Problems with the Rail Input Data

Since the rail travel times, as layed out here, were entered manually they are prone to errors.

So the script calculates when for the direct connection between two cities there is a faster alternative that goes via a (or multiple) other cities. This must obviously be wrong.

Here are the top routes that are most of an detour with the current data. Probably there is something in need of a fix.

All (source, target) pairs of railway station in the given rail network are analyzed. For each such pair, two routes can be found:

• fastest route: the one with the lowest travel time
• shortest route: For each train connection that exists, the GPS positions of the source and target cities are taken. Each connection is then associated with the direct connection between the two cities.

For each of these routes, the following is provided:

• travel duration between the two stations
• travel distance (direct beeline distances between cities)
• intermediate stations between source and target.

Greatest Distance Detours

	source	target	dur_fastest	dur_shortest	dur_diff	dist_fastest	dist_shortest	dist_diff	route_fastest	route_shortest
3162	kau(Kaunas)	nic(Nice)	1546	1690	144	2357771	1918775	438995	[kau, bia, war, poz, ber, goi, kas, fra, mah, str, mul, lyo, mar, nic]	[kau, bia, war, kat, brc, wie, via, ven, ver, mil, geo, nic]
3017	min(Minsk)	nic(Nice)	1527	1671	144	2512878	2073882	438995	[min, brs, war, poz, ber, goi, kas, fra, mah, str, mul, lyo, mar, nic]	[min, brs, war, kat, brc, wie, via, ven, ver, mil, geo, nic]
2993	mos(Moskva)	nic(Nice)	2069	2213	144	3154627	2715632	438995	[mos, min, brs, war, poz, ber, goi, kas, fra, mah, str, mul, lyo, mar, nic]	[mos, min, brs, war, kat, brc, wie, via, ven, ver, mil, geo, nic]
1169	nic(Nice)	tal(Tallinn)	2756	2900	144	4096057	3657062	438995	[nic, mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, brs, min, mos, sak, tal]	[nic, geo, mil, ver, ven, via, wie, brc, kat, war, brs, min, mos, sak, tal]
1168	nic(Nice)	sak(Sankt-Peterburg)	2278	2422	144	3786565	3347570	438995	[nic, mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, brs, min, mos, sak]	[nic, geo, mil, ver, ven, via, wie, brc, kat, war, brs, min, mos, sak]
1167	nic(Nice)	rig(Rīga)	2012	2156	144	2799437	2360441	438995	[nic, mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, bia, kau, vil, dau, rig]	[nic, geo, mil, ver, ven, via, wie, brc, kat, war, bia, kau, vil, dau, rig]
1171	nic(Nice)	tur(Turku)	2605	2749	144	4237606	3798610	438995	[nic, mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, brs, min, mos, sak, hel, tur]	[nic, geo, mil, ver, ven, via, wie, brc, kat, war, brs, min, mos, sak, hel, tur]
3137	bia(Białystok)	nic(Nice)	1270	1414	144	2145283	1706288	438995	[bia, war, poz, ber, goi, kas, fra, mah, str, mul, lyo, mar, nic]	[bia, war, kat, brc, wie, via, ven, ver, mil, geo, nic]
1170	nic(Nice)	oul(Oulu)	2798	2942	144	4601736	4162741	438995	[nic, mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, brs, min, mos, sak, hel, oul]	[nic, geo, mil, ver, ven, via, wie, brc, kat, war, brs, min, mos, sak, hel, oul]
1158	nic(Nice)	war(Warszawa)	1133	1277	144	1961378	1522383	438995	[nic, mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war]	[nic, geo, mil, ver, ven, via, wie, brc, kat, war]
1165	nic(Nice)	vil(Vilnius)	1645	1789	144	2443291	2004296	438995	[nic, mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, bia, kau, vil]	[nic, geo, mil, ver, ven, via, wie, brc, kat, war, bia, kau, vil]
2961	hel(Helsinki)	nic(Nice)	2485	2629	144	4087214	3648219	438995	[hel, sak, mos, min, brs, war, poz, ber, goi, kas, fra, mah, str, mul, lyo, mar, nic]	[hel, sak, mos, min, brs, war, kat, brc, wie, via, ven, ver, mil, geo, nic]
3191	dau(Daugavpils)	nic(Nice)	1808	1952	144	2603389	2164394	438995	[dau, vil, kau, bia, war, poz, ber, goi, kas, fra, mah, str, mul, lyo, mar, nic]	[dau, vil, kau, bia, war, kat, brc, wie, via, ven, ver, mil, geo, nic]
3048	brs(BrestBy)	nic(Nice)	1345	1489	144	2162681	1723686	438995	[brs, war, poz, ber, goi, kas, fra, mah, str, mul, lyo, mar, nic]	[brs, war, kat, brc, wie, via, ven, ver, mil, geo, nic]
2610	kat(Katowice)	lee(Leeds)	1049	1208	159	2079427	1713637	365789	[kat, brc, wie, lin, nur, fra, kol, bru, lil, lon, yor, lee]	[kat, wro, dre, lei, erf, kas, dor, kol, bru, lil, lon, she, lee]
2764	kra(Kraków)	lee(Leeds)	1159	1318	159	2146287	1780497	365789	[kra, kat, brc, wie, lin, nur, fra, kol, bru, lil, lon, yor, lee]	[kra, kat, wro, dre, lei, erf, kas, dor, kol, bru, lil, lon, she, lee]
535	lee(Leeds)	pis(Pisa)	813	869	56	1944706	1609663	335043	[lee, yor, lon, lil, par, lyo, toi, mil, bol, fir, pis]	[lee, she, lon, lil, par, lyo, toi, geo, pis]
1143	mar(Marseille)	var(Varna)	2239	2410	171	2405657	2084905	320752	[mar, lyo, mul, str, stu, mun, saz, lin, wie, bud, tim, buc, var]	[mar, nic, geo, mil, ver, ven, via, lju, zag, beo, sof, var]
3476	kan(Karnobat)	kob(København)	2340	2611	271	2559967	2245599	314367	[kan, sof, beo, bud, wie, lin, nur, erf, lei, ber, ham, kob]	[kan, var, buc, tim, bud, bra, brc, pra, dre, ber, ham, kob]
3473	kan(Karnobat)	szc(Szczecin)	2067	2338	271	2166885	1852517	314367	[kan, sof, beo, bud, wie, lin, nur, erf, lei, ber, szc]	[kan, var, buc, tim, bud, bra, brc, pra, dre, ber, szc]

Greatest Duration Detours

	source	target	dur_fastest	dur_shortest	dur_diff	dist_fastest	dist_shortest	dist_diff	route_fastest	route_shortest
3156	kau(Kaunas)	mar(Marseille)	1391	1845	454	2226426	2050120	176306	[kau, bia, war, poz, ber, goi, kas, fra, mah, str, mul, lyo, mar]	[kau, bia, war, kat, brc, wie, via, ven, ver, mil, geo, nic, mar]
1141	mar(Marseille)	vil(Vilnius)	1490	1944	454	2311947	2135640	176306	[mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, bia, kau, vil]	[mar, nic, geo, mil, ver, ven, via, wie, brc, kat, war, bia, kau, vil]
3039	brs(BrestBy)	mar(Marseille)	1190	1644	454	2031337	1855030	176306	[brs, war, poz, ber, goi, kas, fra, mah, str, mul, lyo, mar]	[brs, war, kat, brc, wie, via, ven, ver, mil, geo, nic, mar]
1132	mar(Marseille)	war(Warszawa)	978	1432	454	1830034	1653727	176306	[mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war]	[mar, nic, geo, mil, ver, ven, via, wie, brc, kat, war]
2955	hel(Helsinki)	mar(Marseille)	2330	2784	454	3955870	3779563	176306	[hel, sak, mos, min, brs, war, poz, ber, goi, kas, fra, mah, str, mul, lyo, mar]	[hel, sak, mos, min, brs, war, kat, brc, wie, via, ven, ver, mil, geo, nic, mar]
1136	mar(Marseille)	min(Minsk)	1372	1826	454	2381533	2205227	176306	[mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, brs, min]	[mar, nic, geo, mil, ver, ven, via, wie, brc, kat, war, brs, min]
1140	mar(Marseille)	mos(Moskva)	1914	2368	454	3023283	2846976	176306	[mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, brs, min, mos]	[mar, nic, geo, mil, ver, ven, via, wie, brc, kat, war, brs, min, mos]
1142	mar(Marseille)	rig(Rīga)	1857	2311	454	2668093	2491786	176306	[mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, bia, kau, vil, dau, rig]	[mar, nic, geo, mil, ver, ven, via, wie, brc, kat, war, bia, kau, vil, dau, rig]
3126	bia(Białystok)	mar(Marseille)	1115	1569	454	2013939	1837632	176306	[bia, war, poz, ber, goi, kas, fra, mah, str, mul, lyo, mar]	[bia, war, kat, brc, wie, via, ven, ver, mil, geo, nic, mar]
1145	mar(Marseille)	sak(Sankt-Peterburg)	2123	2577	454	3655221	3478914	176306	[mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, brs, min, mos, sak]	[mar, nic, geo, mil, ver, ven, via, wie, brc, kat, war, brs, min, mos, sak]
1146	mar(Marseille)	tal(Tallinn)	2601	3055	454	3964713	3788406	176306	[mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, brs, min, mos, sak, tal]	[mar, nic, geo, mil, ver, ven, via, wie, brc, kat, war, brs, min, mos, sak, tal]
1147	mar(Marseille)	oul(Oulu)	2643	3097	454	4470392	4294085	176306	[mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, brs, min, mos, sak, hel, oul]	[mar, nic, geo, mil, ver, ven, via, wie, brc, kat, war, brs, min, mos, sak, hel, oul]
1148	mar(Marseille)	tur(Turku)	2450	2904	454	4106261	3929955	176306	[mar, lyo, mul, str, mah, fra, kas, goi, ber, poz, war, brs, min, mos, sak, hel, tur]	[mar, nic, geo, mil, ver, ven, via, wie, brc, kat, war, brs, min, mos, sak, hel, tur]
3182	dau(Daugavpils)	mar(Marseille)	1653	2107	454	2472045	2295738	176306	[dau, vil, kau, bia, war, poz, ber, goi, kas, fra, mah, str, mul, lyo, mar]	[dau, vil, kau, bia, war, kat, brc, wie, via, ven, ver, mil, geo, nic, mar]
3699	bur(Burgas)	dor(Dortmund)	2066	2490	424	2083537	2042090	41446	[bur, kan, sof, beo, bud, wie, lin, nur, fra, kol, dor]	[bur, kan, var, buc, tim, bud, bra, brc, pra, dre, lei, erf, kas, dor]
2117	dor(Dortmund)	kan(Karnobat)	2030	2454	424	2038990	1997543	41446	[dor, kol, fra, nur, lin, wie, bud, beo, sof, kan]	[dor, kas, erf, lei, dre, pra, brc, bra, bud, tim, buc, var, kan]
2429	dre(Dresden)	nic(Nice)	809	1200	391	1428960	1200658	228302	[dre, lei, erf, fra, mah, str, mul, lyo, mar, nic]	[dre, pra, nur, stu, zur, mil, geo, nic]
1155	nic(Nice)	wro(Wrocław)	1075	1466	391	1647333	1419031	228302	[nic, mar, lyo, mul, str, mah, fra, erf, lei, dre, wro]	[nic, geo, mil, zur, stu, nur, pra, dre, wro]
2516	erf(Erfurt)	kan(Karnobat)	1840	2215	375	1763744	1755751	7993	[erf, nur, lin, wie, bud, beo, sof, kan]	[erf, lei, dre, pra, brc, bra, bud, tim, buc, var, kan]
3691	bur(Burgas)	erf(Erfurt)	1876	2251	375	1808291	1800298	7993	[bur, kan, sof, beo, bud, wie, lin, nur, erf]	[bur, kan, var, buc, tim, bud, bra, brc, pra, dre, lei, erf]

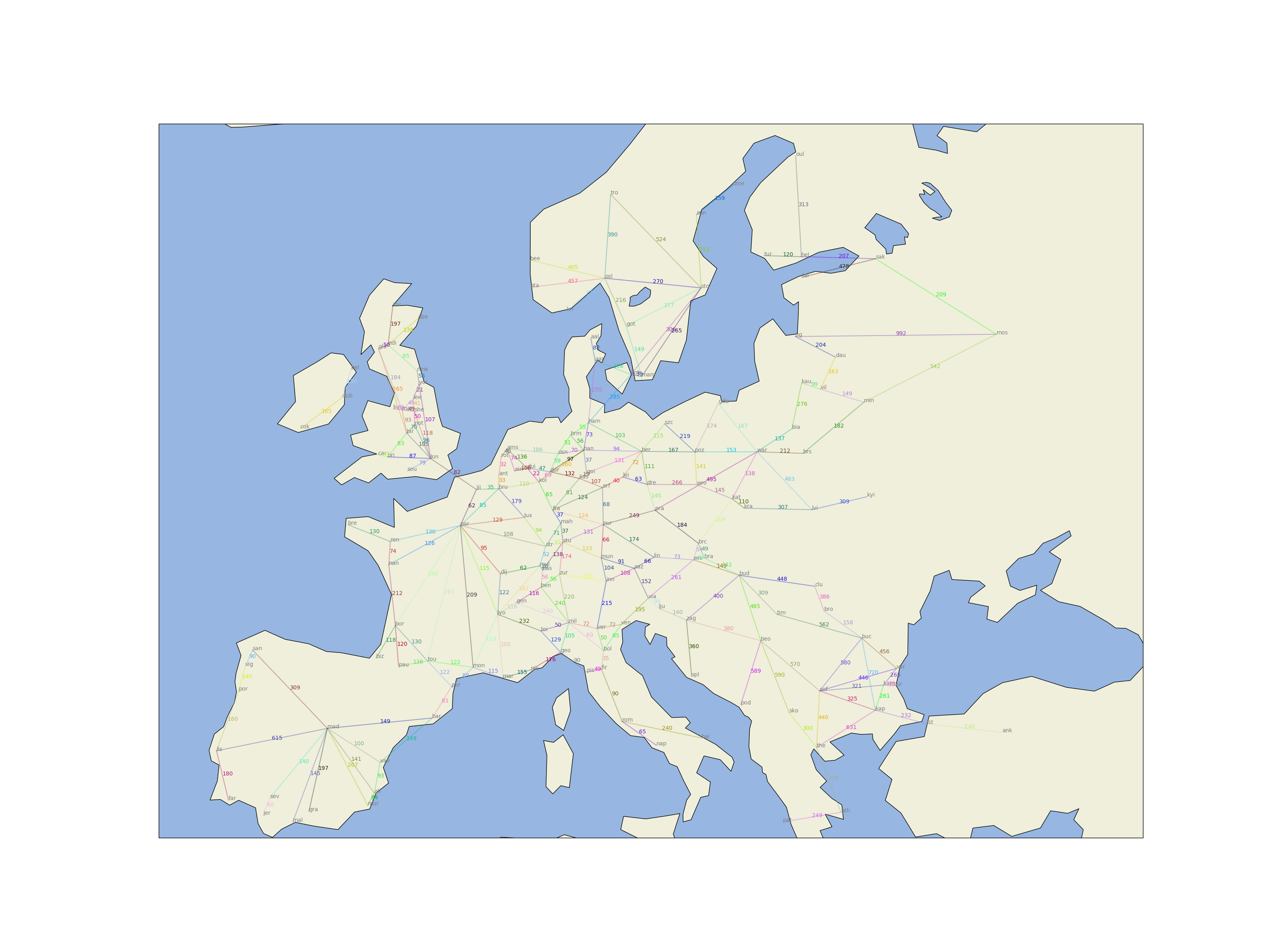

All Travel Durations
